HDfury Diva
Another masterpiece of work from our HDFury dev team, build to disrupt, revolutionize and bring delight to the AV World.
4K HDR 18Gbps/600MHz + 1080p SDR + Full Audio out (extract HDMI/ARC/eARC) + Ambient Light + LAG Tester.

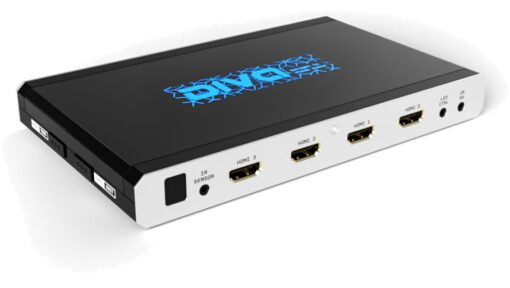

The Hdfury Diva Hardware wise.
The Hdfury Diva central is featuring 4 HDMI inputs, 1 HDMI video output with scaling option, 1 HDR>SDR 1080p output and 1 dedicated HDMI full audio output at 720p or 1080p, LAN Control, RS232, L/R stereo or Optical 5.1 output, Led Control, IR RX, IR/Light sensor, IR window, OLED display and 4 buttons on the side allowing to enter/exit and perform change in the Hdfury Diva device system menu.
All inputs are capable of 4K HDR/HLG/DV/LLDV/HDR10+ up to 18Gbps for video and support any sound format in existence today, HDMI TX0 video output is capable of outputting 18Gbps and all sound formats as well.
HDFury Diva is always running in a Matrix/Scaler mode ensuring your setup remains optimized at its best capabilities.
Optionally, you can add ambient light solution up to 4K HDR/LLDV available in 3 different lengths to match your display size.
The Hdfury Diva Software wise.
We went further than anything we ever made and full filled Hdfury Diva with revisited and improved HDR management features. We also added some new features never seen before such as TMDS switching for all inputs which allow auto-switch sources such as ATV4K, X1X or Shield that no other switch on the market is able to auto switch.
Hdfury Diva support ARC AND eARC
[16-JAN-2019] World First eARC HDMI2.1 breakthrough: Hdfury Diva now supports ARC and eARC sound extraction from TV for up to Atmos high bit rate over TrueHD forwarded to any AVR input via Diva HDMI audio output (ARC-Key feature)!
All HDfury legacy features remain present, each input EDID can be set individually from a list of 100 EDID, HDCP conversion, Scaling and signal operations such as Chroma/Color depth/Color space, PJ&Display macro, Infoframes modes, CEC command, ARC, HTPC mode, special modes, sound extraction and more.
Hdfury Diva is the smart solution and converter for interoperability between any HDMI revision equipment, for content creators, calibrators, streamers, digital entertainment centers, UHDTV retail, show sites, data centers, schools, conference or home cinema and much more.
This Hdfury Diva is a unique HDMI 2.0b device
The Hdfury Diva supports up to 4 inputs for true full 4K60 4:4:4 600MHz 18Gbps bandwidth signals. It will allow you to solve any HDCP error, extract full HDMI audio from HDMI sources and ARC/eARC up to Atmos HBR over TrueHD from ARC and eARC TVs to feed older AVR and Matrix any SD/HD/FHD/UHD/HDR/DV or PC signals up to 600MHz.
With the Hdfury Diva you can Upscale to 4K or downscale to 1080p SDR any channel individually, display relevant information on OLED/OSD, select between multiple EDID banks for each input. Inject, replace or translate HDR metadata and AVI infoframe. It is also capable of auto-switching any sources including X1X, ATV4K, Shield, etc… Based on incoming content type it can send relevant RS232 commands to any RS232 controllable display. Hdfury Diva Control can be completed with IR codes, push buttons on the unit, via IP or RS232 (MAC/WIN/Linux) or through embedded Webserver (for any web browser based device such as MAC/WIN/Linux computer or Android/iOS phones, tablets and others).
All Hdfury Diva setup information is visible at first sight true OLED, On-Screen Display or Web server.
Hdfury Diva technical specs
| HDMI revision: | HDMI 2.0b (Level A) 600Mcsc – 18Gbps |
|---|---|
| HDFURY Diva Support: | 600MHz/18Gbps HDR, HDR10+, HLG, DV & LLDV, eARC |
| Max Resolution: | 4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b |
| TOTAL I/O: | 4 HDMI In, 3 HDMI Out, 1 RJ45, 2 IR, 1 RS232, 1 Analog Jack & Optical Out. |
| Upscale port TX0: | FHD 1080p & 2K to UHD 2160p & 4K/DCI |
| Downscale port TX1: | UHD/HDR 2160p & 4K/DCI to FHD/SDR 1080p & 2K |
| Full Audio port: | Full HDMI/ARC/eARC Audio extraction via 720p/1080p self generated stream to feed any AVR input |
| TMDS Switching: | Autoswitch support for ATV4K, X1X, and other sources continuously sending +5V |
| Signal Conversion: | Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP |
| HDCP Conversion: | Any HDCP to any HDCP with CST1 support |
| Hdfury Operating Modes: | 18Gbps Matrix, Scaler, Splitter & Switcher with CEC, eARC, ARC and EDID management |
| Special Modes: | CEC Command, HTPC, Disable or replace HDR/HLG, HDMI Doctor, RS232 Macro. |
| EDID Modes: | 10 EDID Flags, 5 EDID Algo, 100 EDID Banks (10 custom) |
| Infoframe Modes: | Capture, edit, create, block or replace HDR/HLG metadata, AVI & VSIF. Read SPD, Audio, HDMI Vendor, HDMI Forum |
| Control Modes: | New HDfury Diva Web server, IR, RS232 for Linux/MAC/Win or push buttons |
| Led strips Length: | 56x PCH 12b LEDs with: 3cm gap for 24″-32″ (PC screen), 4cm gap for 43-55″, 6cm for 60″-75″ |
| Input LAG Tester: | Accurate HDMI/HDCP up to 4K HDR input lag measurements. |
| On-Screen Display: | Editable with custom text and mask. (cover TV channel logo) |
| Oled: | 3.12″ Diagonal, 256×64, 16 blue colors |
| Diva Dimension: | 4.5″L x 7.3″W x 0.9″H – in CM: 11.5 x 18.5 x 2.4 |
| TX Weight: | 520g – 1.15 LBS |
| Input Lag: | <1ms (nanoseconds count) |
| Other info: | 3D Support, CEC Pass Through, DSD, eARC (HDMI2.1) |
